Understanding Split System AC

Split system air conditioning is a popular choice for cooling homes and commercial spaces.

It offers several advantages over other types of air conditioning systems, such as window units or central air conditioning. In this article, we will explore the working principles, components, benefits, and considerations of split system air conditioners.

Working Principles:

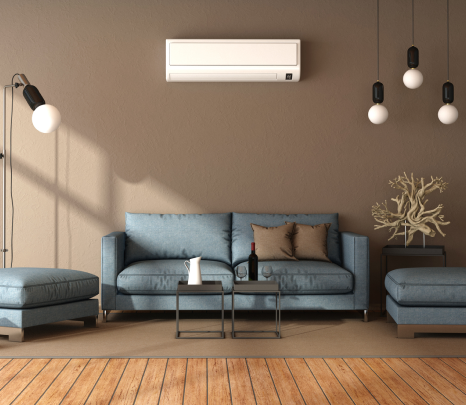

A split system air conditioner consists of two main components: an indoor unit and an outdoor unit. The indoor unit is typically installed on a wall or ceiling inside the space to be cooled, while the outdoor unit is placed outside the building. Refrigerant lines and electrical wiring connect these two units.

The cooling starts when the indoor unit absorbs warm air from the room. This warm air passes through the evaporator coil, where it is cooled and dehumidified. The cooled air is then released back into the room, creating a comfortable indoor environment.

Meanwhile, the outdoor unit contains a compressor, condenser coil, and fan. The compressor pressurizes the refrigerant and sends it to the condenser coil. The condenser coil releases heat from the refrigerant to the outdoor air, and the refrigerant is then circulated back to the indoor unit to repeat the cooling cycle.

Components of a Split System AC:

a. Indoor Unit:
Evaporator Coil: This coil cools and dehumidifies the air passing through it.
Air Filter: It removes dust, pollen, and other particles from the air.
Blower: The blower fan circulates the cooled air back into the room.
Thermostat: It allows users to set the desired temperature.

b. Outdoor Unit:
Compressor: The compressor increases the pressure of the refrigerant.
Condenser Coil: This coil releases heat from the refrigerant.
Fan: The fan blows outdoor air over the condenser coil to dissipate heat.
Refrigerant Lines: These lines carry the refrigerant between the indoor and outdoor units.

Benefits of Split System AC:

a. Energy Efficiency: Split system air conditioners are known for their energy efficiency. They can cool specific zones or rooms, allowing users to save energy by cooling only occupied areas.

b. Quiet Operation: The noisy components, such as the compressor and condenser, are located in the outdoor unit, ensuring quiet operation indoors.

c. Flexible Installation: Split system ACs offer flexible installation options. The indoor unit can be mounted on a wall or ceiling, and the outdoor unit can be placed at a suitable location outside the building.

d. Zoning Capability: With a split system AC, it is possible to create different temperature zones within a building. This allows for personalized comfort and energy savings by cooling only the necessary areas.

e. Improved Indoor Air Quality: Split system air conditioners often have built-in air filters that trap dust, pollen, and other airborne particles. This helps in improving indoor air quality by reducing allergens and pollutants.

f. Easy Maintenance: Split system ACs are relatively easy to maintain. The filters can be easily cleaned or replaced, and the outdoor unit requires periodic cleaning to remove debris.
Considerations:


In recent years, split-system air conditioners have become increasingly popular in residential and commercial settings. Split system ACs offer several advantages over traditional window units or central air conditioning systems, including energy efficiency, quiet operation, and easy installation. This article aims to provide a comprehensive understanding of split system ACs, including their components, working principles, benefits, and considerations for installation and maintenance.

Components of a Split System AC:


A split system air conditioner consists of two main components: an indoor unit and an outdoor unit.

a. Indoor Unit: The indoor unit of a split system AC is typically installed inside the room or area that needs to be cooled. It houses the evaporator coil, fan, air filter, and control panel. The evaporator coil cools the air by removing heat and moisture from it. The fan circulates the cooled air throughout the room while the air filter traps dust and particles, ensuring clean air quality. The control panel allows the user to adjust settings such as temperature, fan speed, and mode of operation.

b. Outdoor Unit: The outdoor unit of a split system AC is installed outside the building, usually on a wall or the ground. It contains the condenser coil, compressor, and fan. The condenser coil releases the heat absorbed from the indoor air, while the compressor pumps the refrigerant between the indoor and outdoor units, facilitating heat transfer. The fan helps dissipate heat generated by the condenser coil.

Working Principles of Split System ACs:

Split system ACs work on the principle of refrigeration, using a refrigerant to transfer heat from indoors to outdoors. The refrigerant, usually a chemical compound like R-410A, undergoes a continuous cycle of evaporation and condensation.

The cooling cycle starts with the indoor unit. Warm air from the room is drawn in through the return air grille and passes over the evaporator coil. The refrigerant inside the coil absorbs the heat from the air, causing it to evaporate and transform into a low-pressure, low-temperature gas. The cooled air is then blown back into the room by the indoor unit's fan.

Simultaneously, the refrigerant gas flows through copper tubing to the outdoor unit. There, the compressor increases the pressure and temperature of the gas, transforming it into a high-pressure, high-temperature gas. As the refrigerant passes through the outdoor condenser coil, the heat is released to the outside air, and the refrigerant condenses back into a liquid state; Air Conditioning in Sydney

The liquid refrigerant then travels back to the indoor unit through the copper tubing, and the cycle repeats. This continuous process efficiently cools the indoor air while transferring the heat to the outdoor environment.

Benefits of Split System ACs:

a. Energy Efficiency: Split system ACs are known for their energy efficiency. Since they cool individual rooms or areas, they allow for zoned cooling, enabling users to cool only the spaces in use. This targeted approach reduces energy wastage compared to central AC systems that cool the entire building, including unoccupied areas. Additionally, split system ACs often have inverter technology, which adjusts the compressor's speed to match the cooling demand, resulting in further energy savings.

b. Quiet Operation: Split system ACs offer quiet operation, making them ideal for bedrooms, living rooms, and offices. The indoor unit's fan and compressor are designed to operate with minimal noise levels, ensuring a peaceful environment.

c. Easy Installation: Installing a split system AC is relatively straightforward compared to other cooling systems. The indoor and outdoor units are connected by a small hole in the wall, requiring minimal construction work. This simplicity makes split system ACs popular for retrofitting in existing buildings.

d. Flexibility: Split system AC
